TSN1-32L RCBO is used in single phase circuit of AC 50/60Hz, rated voltage 240V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time. It also protects person from electric shock when the live wire connected opposite. The products comply with the standards of IEC61009.TSN1-32L RCBO is used in the single phase circuit of AC 50/60Hz, rated voltage 240V, used as electron shock protection. It can protect circuit form overload and short circuit. This product has advantages of small volume, high breaking capacity, live and zero wire are cut off at the same time. It also protects person from electric shock when the live wire connected opposite. The products comply with the standards of IEC61009.
Specification
Why us?
1. Clients' benefit first.
2. 26 years' experience.
3. Reasonable price and good source of raw material.
4. A group of professional inspectors monitor quality.
5. TUV, SEMKO, CE, CB, ROHS Approval for products.
6. Unique design for packing.
7. Experienced salesmen.
The Related Pictures of TSN1-32L RCBO Residual Current Circuit Breaker
Manual

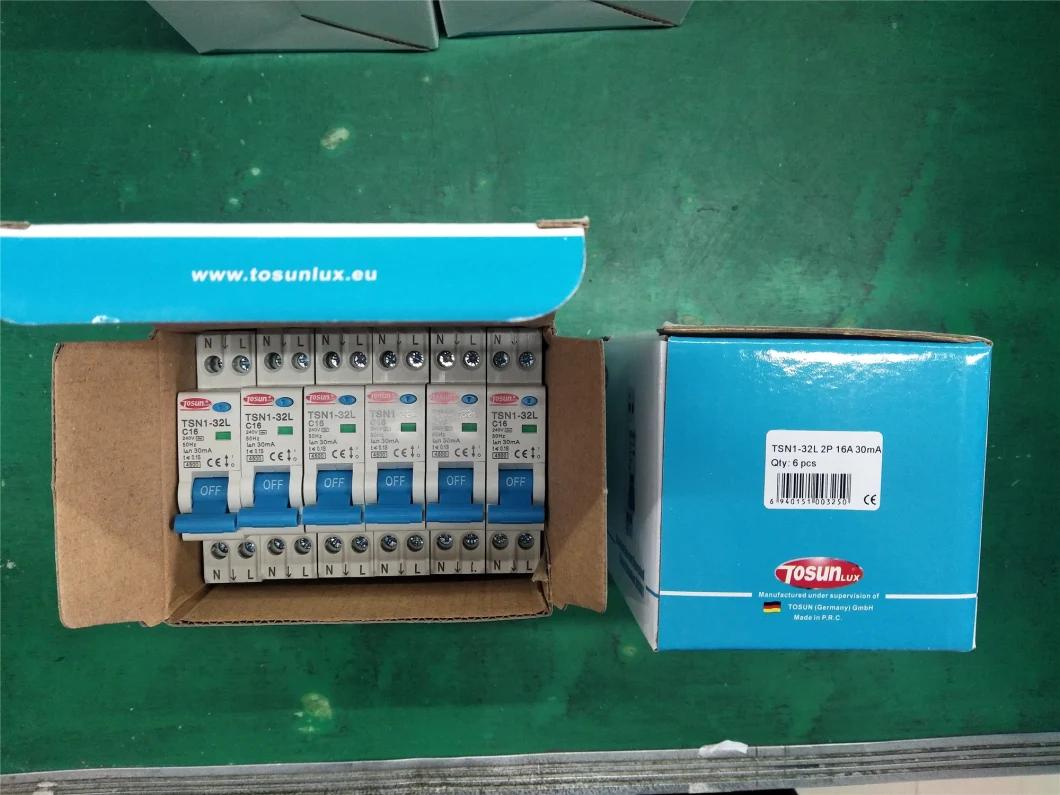

The Tosunlux Style Package of TSN1-32L RCBO Residual Current Circuit Breaker
Specification
| Model | TSN1-32L | |
| Number Of Poles | 1P+N | |
| Rated Current(A) | 6, 10, 16, 20, 25, 32 | |
| Related Residual Operating Current I△N(MA) | 10, 30, 100 | |
| Related Residual Non-Operating Current I△NO(MA) | 5, 15, 50 | |
| Max. Breaking Time(S) | I△N | 0.1 |
| 2I△N | 0.05 | |
| 0.25A | 0.04 | |
| 500A | 0.04 | |
| Breaking Capacity (A) | 6000 | |
| Characteristic | B, C | |
| Insulation Voltage (V) | 500 | |
| Protection Degree | IP20 | |
| Electrical Life | 10000 Times | |
| Mechanical Life | 20000 Times | |
| Dimensions | 84x70x36mm | |
