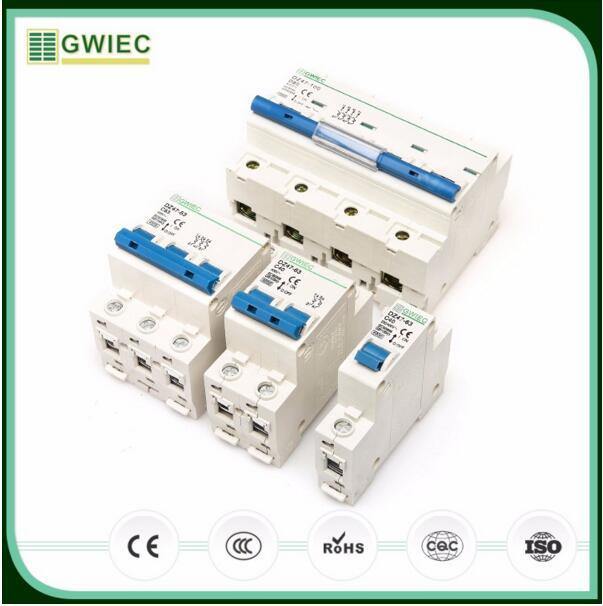

GWIEC Yueqing Factory Electrical Leakage Protection Dz47Le Rcbo Circuit Breaker
Miniature Circuit Breaker Feature:1.C45N / DZ47 series circuit breaker is used in lighting distribution system or motor distribution system for protection overload and short-circuit in the system
2.The product is neoteric in structure, light in weight, reliable and excellent in performance
3.It has high breaking capacity, can trip quickly, and its case and items are adopted by high fire-resistant and shockproof plastics
4.The product, with long life, is mainly used in AC 50Hz/60Hz single pole 230V or two, three, four pole 400V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case
5.The products comply with IEC 60898
Normal Operation and Mounting Requirement:
1.Circumstance temperature -5~40ºC,average temperature not exceeding 35ºC
2.Altitude above sea level less than 2000m
3.Humidity not exceeding 50% +40ºC and not exceeding 90% +25ºC
4.Installation class II or III;Pollution class II
5.Installation method DIN Rail mounting type
6.The external magnetism shall not be more than 5times of terrestrial one
7.Product shall be installed vertically at the place where there shall be no severe impact and vibration
8.The product is switched on when the handle is at upper position

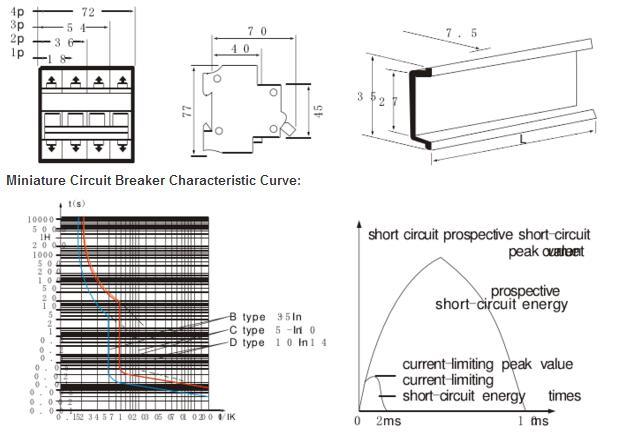

Miniature Circuit Breaker Specification:
GWIEC is specialized in manufacturing in contactor,circuit breakers,thermal overload relays and magnetic starters,etc.
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates.
GWIEC will insist her belief "Quality is Brand"to bring "Better Quality, Better Service and Better Price"to customers, our goal is to maximize your profit and bring mutual success to both of us!
GWIEC attaches great importance of Product Quality and Safety Production Process. Our company has passed ISO Certificates. Our products are listed by CQC, CE, RoHS certificates. we supply for global factories and distributors which are experienced in filed electric products and green energy. Just like Europe, South America, Russia, Asia etc.
1.Could I put my own logo on it?
> Sure, customers' logo can be made by laser, engraved, embossed, transfer printing etc.
2.Should I pay extra for logo printing ?
> Normally usd 0.017/per color,according to the actual situation.
3.How about the quality ?
> Acquire the CE & SGS Certification.
> 100% QC in produce process and before package.
4.Could I buy 1pc sample first and small order ?
> Of course, support sample order and small order, especially for new customers under certain condition
5.How much for 1pc sample ?
>Some cheap ones may free for 1pcs but need to see the actual stock.
6.If I have my thoughts, do you have person to design according to my concept?
> Certainly,our design team is willing to do for you.
7.How long to make a sample?
> 2-5 days which depends on the samples' complexity.
8.Is the sample fee refundable or not?
> Sure, refundable once order confirmed.
With more than 15 years OEM experience, we can provide professional solutions for customers.
